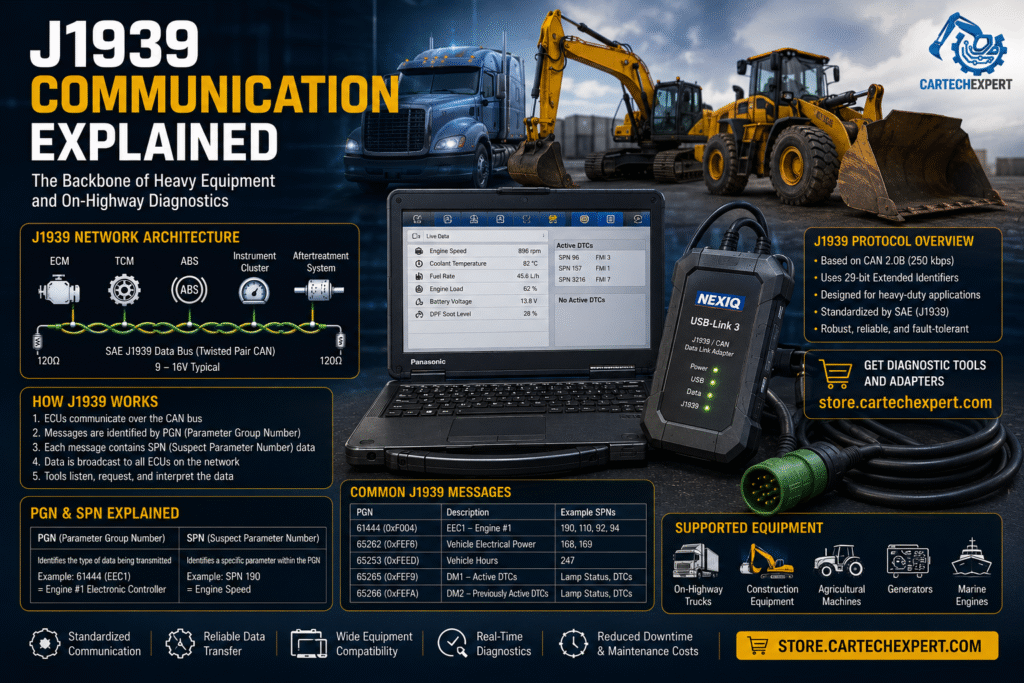

SAE J1939 Communication Explained: The Complete Guide for Heavy-Duty Trucks & Heavy Equipment
Last Updated: July 2026
| Quick Information | |
|---|---|
| Standard | SAE J1939 |
| Organization | SAE International |
| Communication Type | CAN Bus Higher-Layer Protocol |
| Typical Industries | Heavy Trucks, Construction Equipment, Agriculture, Mining, Marine, Power Generation |
| Purpose | Communication between Electronic Control Units (ECUs) |
Table of Contents
- Introduction
- What is SAE J1939?
- How J1939 Works
- Main Components
- Network Architecture
- PGNs Explained
- SPNs Explained
- Common J1939 Messages
- Supported Equipment
- Diagnostic Tools
- Common Communication Problems
- Troubleshooting Workflow
- Advantages
- Frequently Asked Questions
- Field Engineer’s Notes
- Conclusion
Introduction
SAE J1939 is one of the most widely used communication standards in heavy-duty vehicles and off-highway equipment. It allows electronic control units (ECUs) to exchange information over a Controller Area Network (CAN) bus, enabling modern engines, transmissions, hydraulic systems, braking systems and operator displays to work together.
What is SAE J1939?
J1939 is a higher-layer protocol built on CAN Bus technology. Rather than simply sending electrical signals, it defines how ECUs identify themselves, exchange messages, report diagnostic information and communicate operating data.
How J1939 Works
- Electronic controllers are connected through a CAN network.
- Every controller has a unique source address.
- Information is transmitted as Parameter Group Numbers (PGNs).
- Individual data items are identified by Suspect Parameter Numbers (SPNs).
- Diagnostic Trouble Codes (DTCs) combine SPNs with Failure Mode Identifiers (FMIs).
Main Components
| Component | Purpose |
|---|---|
| Engine ECU | Engine management |
| Transmission ECU | Transmission control |
| ABS Controller | Brake system |
| Hydraulic Controller | Hydraulic functions |
| Instrument Cluster | Displays machine information |
| Diagnostic Connector | Technician access |
Network Architecture
| Item | Description |
|---|---|
| CAN High | Communication wire |
| CAN Low | Communication wire |
| 120Ω Terminators | Network stability |
| Twisted Pair Cable | Noise reduction |
PGNs Explained
Parameter Group Numbers (PGNs) identify groups of information transmitted across the network. Examples include engine speed, coolant temperature, fuel rate and many other operating parameters.
SPNs Explained
Suspect Parameter Numbers (SPNs) identify individual operating values. When combined with a Failure Mode Identifier (FMI), they form standardized diagnostic trouble codes used by technicians worldwide.
Common J1939 Messages
| Message | Typical Data |
|---|---|
| Engine Speed | RPM |
| Engine Coolant Temperature | Temperature |
| Fuel Rate | Fuel consumption |
| Vehicle Speed | Road speed |
| Oil Pressure | Engine lubrication |
Supported Equipment
- Caterpillar
- Komatsu
- Volvo
- John Deere
- AGCO
- CNH Industrial
- Cummins-powered trucks
- Detroit Diesel platforms
- Scania
- MAN
- Mercedes-Benz commercial vehicles
Diagnostic Tools Supporting J1939
- CAT Electronic Technician (CAT ET)
- Cummins INSITE
- Volvo Premium Tech Tool (PTT)
- JCB ServiceMaster
- CNH EST
- AGCO EDT
- Nexiq USB-Link
- CAT Communication Adapter III
Common Communication Problems
- Broken CAN wiring
- Corroded connectors
- Failed terminating resistor
- Low battery voltage
- Damaged ECU
- Incorrect adapter configuration
Troubleshooting Workflow
- Verify battery voltage.
- Measure CAN resistance.
- Inspect wiring harnesses.
- Check diagnostic connector.
- Connect diagnostic software.
- Identify offline ECUs.
- Repair communication fault.
Advantages
- Industry-standard communication.
- Interoperability between suppliers.
- Reliable diagnostics.
- Fast data exchange.
- Supports modern heavy equipment.
Frequently Asked Questions
Is J1939 the same as CAN Bus?
No. CAN Bus is the physical communication layer, while SAE J1939 defines the higher-level communication rules used by many heavy-duty vehicles and machines.
Which diagnostic adapters support J1939?
Many professional interfaces such as CAT Communication Adapter III, Nexiq USB-Link, Volvo VOCOM, Cummins INLINE and other compatible interfaces can communicate with J1939 networks when used with supported software.
Why are 120-ohm terminating resistors important?
They help maintain signal integrity across the CAN network and reduce communication errors.
Field Engineer’s Notes
In real workshop conditions, communication failures are more often caused by damaged wiring, loose connectors or missing terminating resistors than by failed ECUs. Always verify the physical network before replacing electronic components.
Conclusion
Understanding SAE J1939 is essential for every heavy equipment and commercial vehicle technician. Whether diagnosing Caterpillar excavators, Volvo trucks, John Deere tractors or Cummins-powered equipment, J1939 provides the communication foundation that allows modern diagnostic software to retrieve accurate information from electronic control systems.
